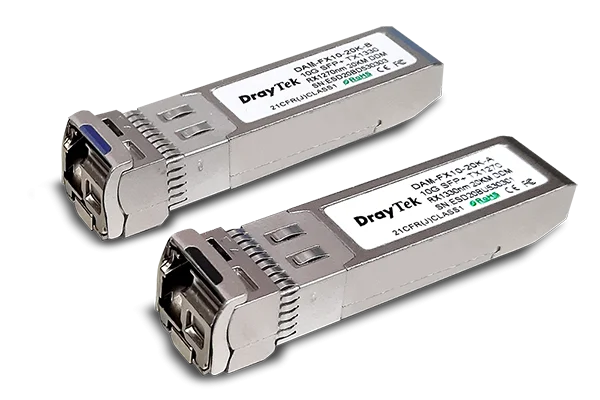

- DAM-FX10-20K-A
- DAM-FX10-20K-B
Séria DAM-FX10-20K
Single mode transceivery série DAM-FX10-20K sú malé plug-and-play SFP + moduly pre obojsmernú komunikáciu cez vlákno Sinlge (Simplex). Tieto moduly sú navrhnuté pre 10GBASE-LR/LW, ako je definované v IEEE 802.3ae, a majú konektor SFP+ s funkciou hot-plug.
Modulový transceiver BiDi SFP+ je špeciálne navrhnutý pre single mode optické vlákna. Pracuje pri menovitej vlnovej dĺžke 1270 nm alebo 1330 nm. Maximálny dosah modulu je 20 km.
Moduly je možné použiť vo VigorSwitchoch so slotom SFP+ alebo v sériách Vigor 3910 a 3912.
K dispozícii sú 2 typy:
technické údaje
| Support media | Single-mode fiber |
| Connector | SFP+ |
| Connector type | Simplex LC |
| Cable type | SMF |
| Cable distance | tot 20km |
| Data rate | 9.95Gb/s to 11.3Gb/s |
| Wavelength | TX1270nm/RX1330nm |
| Transmitter | DFB |
| DOM | Support |
| Protocols | 10GBASE Ethernet, SFF-8431, SFF-8472 |
| Power supply | 3.3V |
| Power consumption | <1watt |
| Operating temperature | 0°C tot 70°C |
| Storage temperature | -40°C tot 85°C |
| Humidity (non-condensing) | 0°C tot 85°C |
| Certificate | RoHS |
Špecifikácie produktu
Nog geen specificaties ingevoerd!
